Oniro Emulator

The Oniro Emulator provides an easy and accessible way to develop and test applications or system components without the need for physical hardware.
It is based on QEMU, a powerful open-source machine emulator and virtualizer.
The emulator uses the x86_64 architecture, which, when run on an x86 host PC, enables faster emulation by leveraging KVM on Linux and Hyper-V on Windows for hardware-assisted virtualization.

This guide provides step-by-step instructions to build and run the Oniro Emulator.

Oniro Emulator

Fetch and Build

Before proceeding, ensure your build environment is ready and the Oniro source code is available by following the Quick Build Setup guide (make sure you are using the OpenHarmony-5.0.2-Release branch). Proceed with the following steps for additional environment setup and build the system image for the emulator.

Switch to Required Kernel Version

Replace the default kernel with the required version:

rm -rf kernel/linux/linux-6.6
git clone -b weekly_20241216 https://gitee.com/openharmony/kernel_linux_6.6.git kernel/linux/linux-6.6 --depth=1

Apply source patches

Run the patching script:

bash vendor/oniro/std_emulator/hook/hook_start.sh

Build the images

Start the build with ccache enabled:

./build.sh --product-name std_emulator --ccache

(Optional) Revert patches

If needed, you can undo the applied patches:

bash vendor/oobemulator/std_emulator/hook/hook_end.sh

Alternative: Download Prebuilt Images

Instead of building the images yourself, you can download the prebuilt Oniro Emulator images.

After downloading, extract the archive and use the included run scripts as described in the next section.

QEMU Installation

The emulator requires QEMU to be installed on your system.

Linux

  • On Debian-based Linux distributions:
    Install QEMU using the following command:
    sudo apt install qemu-system-x86

Windows

  • Download and install QEMU from the official website.
  • After installing QEMU, add the QEMU installation directory (e.g., C:\Program Files\qemu) to your PATH environment variable to ensure the QEMU executables are accessible from the command line.

  • The emulator requires Hyper-V to be enabled on your system:

  • Open Start Menu and search for “Turn Windows features on or off”.

  • In the Windows Features dialog, check the boxes for:
    • Hyper-V
    • Hyper-V Management Tools
    • Hyper-V Platform
  • Click OK and wait for the changes to apply.
  • Restart your system after enabling Hyper-V.

Refer to the platform-specific instructions on the QEMU website for further installation details.

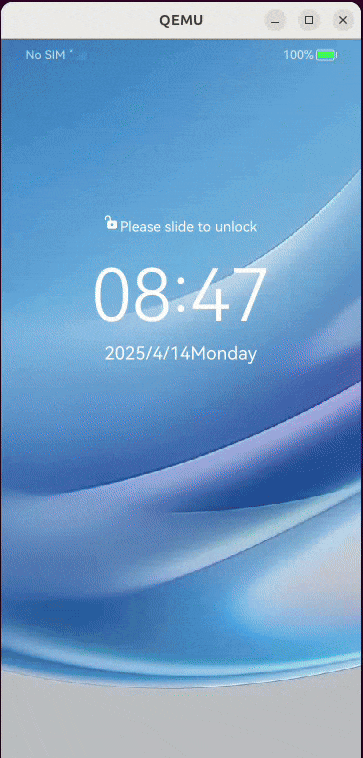

Running the Emulator

After building, you will find the emulator run scripts (run.sh for Linux, run.bat for Windows) in the output images directory:

out/std_emulator/packages/phone/images

These scripts launch QEMU with the correct parameters for the Oniro Emulator.

To start the emulator, use the appropriate script for your operating system:

  • Linux:

    sudo ./run.sh

    If you encounter permission errors, ensure the script is executable:
    chmod +x run.sh

  • Windows:

    .\run.bat

    Run the script from a Command Prompt or PowerShell window with administrator rights if required.

Connecting to the Emulator with HDC

Once the emulator is running, you can connect to it using HDC (the OpenHarmony Device Connector):

hdc tconn localhost:55555

This command connects your host to the emulator instance for debugging and file transfer.

Note

hdc is included in the OpenHarmony SDK toolchain. Ensure it is in your PATH.

Reference

For additional information please refer to the Oniro Board Support Packages repository.
