Troubleshooting

Application should compile and run without issues on the HarmonyNEXT system. However, when using the current RNOH version 0.72 in Open Harmony, problems may occur.

The application was running on the HiHope HH-SCDAYU200 development board with OpenHarmony 5.0.

Issues

After resolving the issues below, the project compiled and ran correctly.

1. Filename longer than 260 characters

Compilation of the project by DevEco ends with the following error:

> hvigor WARN: ninja: error: Stat(rn/patches/react_native_core/react/renderer/textlayoutmanager/CMakeFiles/react_render_textlayoutmanager.dir/C_/Projects/MyReactNativeApp/oh_modules/@rnoh/react-native-openharmony/src/main/cpp/third-party/rn/ReactCommon/react/renderer/textlayoutmanager/TextMeasureCache.cpp.o): Filename longer than 260 characters

> hvigor ERROR: Failed :entry:default@BuildNativeWithNinja...
> hvigor ERROR: Exceptions happened while executing: ninja: Entering directory `C:\Projects\MyReactNativeApp\entry\.cxx\default\default\debug\arm64-v8a'
[0/2] Re-checking globbed directories...
ninja: error: Stat(rn/patches/react_native_core/react/renderer/textlayoutmanager/CMakeFiles/react_render_textlayoutmanager.dir/C_/Projects/MyReactNativeApp/oh_modules/@rnoh/react-native-openharmony/src/main/cpp/third-party/rn/ReactCommon/react/renderer/textlayoutmanager/TextMeasureCache.cpp.o): Filename longer than 260 characters

> hvigor ERROR: BUILD FAILED in 2 s 45 ms

Cause

  • The name and path of the compiled file exceed 260 characters. This limitation is imposed by Windows: https://learn.microsoft.com/en-us/windows/win32/fileio/maximum-file-path-limitation

  • The issue might also be caused by the ninja.exe program: https://github.com/ninja-build/ninja/issues/1900

Solution

  • Make registry changes according to the instructions provided on Microsoft's pages.
  • Check if a newer version of the ninja.exe program resolves the issue.
  • Move the project directory to the root folder of the hard drive.
  • OR: Build the application on macOS or Linux.

2. Couldn't create bindings between ETS and CPP

The application compiles but immediately crashes after start:

Device info:OpenHarmony 3.2
Build info:OpenHarmony 5.0.0.71
Fingerprint:59107f8d9f3eb72ce161c09a75801513b584c54a4e3cb7a3c25211769024282b
Module name:com.rnoh.tester
Version:1.0.0
VersionCode:1000000
PreInstalled:No
Foreground:Yes
Pid:24187
Uid:20010046
Reason:Error
Error name:Error
Error message:Couldn't create bindings between ETS and CPP. libRNOHApp is undefined.
Stacktrace:
    at RNOHError (react_native_openharmony/src/main/ets/RNOH/RNOHError.ts:35:5)
    at FatalRNOHError (react_native_openharmony/src/main/ets/RNOH/RNOHError.ts:8:10)
    at onInit (react_native_openharmony/src/main/ets/RNOH/NapiBridge.ts:98:19)
    at create (react_native_openharmony/src/main/ets/RNOH/RNInstancesCoordinator.ets:127:7)
    at onCreate (react_native_openharmony/src/main/ets/RNOH/RNAbility.ets:96:35)

Cause

The libRNOHApp library actually corresponds to the dynamic library librnoh_app.so, which is the result of compiling C++ as a dynamic library. The error may occur for two reasons:

  • librnoh_app.so does not actually exist.
  • The library is present, but the issue is caused by other factors.

Solution

  • Check if the librnoh_app.so file is available, navigate to the root directory of the Harmony project and:

    • Check the folder:
      \entry\build\default\intermediates\libs\default\arm64-v8a\ to see if the appropriate .so file is present;

    • Or check if in the package XXX.hap located in:
      \entry\build\default\outputs\default\ the libs/arm64-v8a directory contains the appropriate .so file.

  • Edit the configuration file entry/build-profile.json5 in the buildOptions section by adding the externalNativeOptions option:

"buildOption": {
    "externalNativeOptions": {
        "path": "./src/main/cpp/CMakeLists.txt",
        "arguments": "",
        "cppFlags": "",
    }
}

  • Check the Hilog to locate the fault. One possible cause is that libhermes.so is not packed into YOURAPPNAME.hap. (The Hilog reports can't find library libhermes.so in namespace: moduleNs_default.)

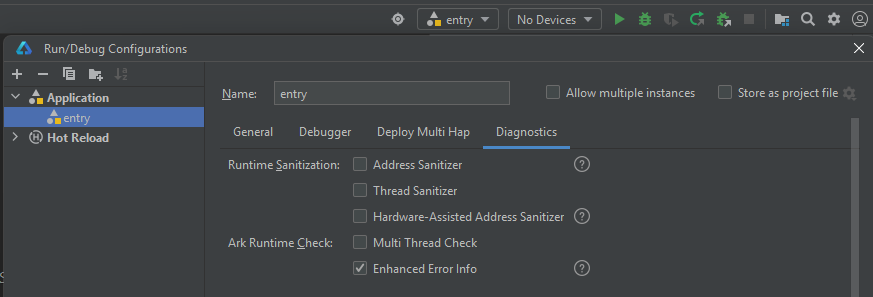

  • Alternatively, enable the error enhancement function of IDE, as shown in the following figure:

Enhanced error info

  • Upgrade your IDE to the latest version.

  • Add the following information to /build-profile.json5 of the HAR module:

(type=har in modules.json5)
    "nativeLib": { // Same level as apiType
        "excludeFromHar": false
    }
- To manually solve the problem, you can also copy the content in the oh_modules/@rnoh/react-native-openharmony/src/main/cpp/third-party/prebuilt directory of the RN source code to the oh_modules/@rnoh/react-native-openharmony/libs directory.

  • Check if your version of Open Harmony is 64-bit. If not, flash your device with the 64-bit OHOS image: https://ci.openharmony.cn/workbench/cicd/dailybuild/dailylist

3. Kit '@kit.ShareKit' has no corresponding config file in ArkTS SDK

The project fails to compile as an OpenHarmony SDK API 12 target. Error message:

Kit '@kit.ShareKit' has no corresponding config file in ArkTS SDK

Cause

This library is missing in the OpenHarmony SDK API 12.

Workaround

Temporary solution: This RN functionality will not work. However, it allows the project to compile on the OpenHarmony system. The ultimate solution should remove the dependency on libraries from the HarmonyNEXT SDK.

Edit the file ShareTurboModule.ts located in the directory:

.\oh-app\oh_modules\.ohpm\@rnoh+react-native-openharmony@0.72.53\oh_modules\@rnoh\react-native-openharmony\src\main\ets\RNOHCorePackage\turboModules
On line 11, comment out:

import { RNOHLogger } from '../../RNOH/RNOHLogger';
//import { systemShare } from '@kit.ShareKit';

Modify share method:

  async share(
    content: { title?: string; message?: string; url?: string },
    dialogTitle?: string,
  ): Promise<{ action: string }> {
    if (!content) {
        this.logger.error('Content is null');
        return Promise.reject('Content cannot be null');
    }

    return Promise.resolve({ action: ACTION_SHARED });

    // let sharedData: systemShare.SharedData = new systemShare.SharedData(undefined);
    // let sharedRecord: systemShare.SharedData = ...
    // [...]
    // [comment out the rest of the code in this method]

Now the project should compile correctly. You might also try replacing that code to use @ohos.app.ability.wantConstant from the OHOS SDK.

4. Error loading shared library librawfile.z.so

Application starts without crashing, but it is a transparent layer with no UI. The following error appears in the logs:

Error message:First attempt: load app module failed. Error loading shared library librawfile.z.so: No such file or directory (needed by /data/storage/el1/bundle/libs/arm64/librnoh_app.so)
Second attempt: load module default/rnoh_app failed. module path is empty
try to load abc file from  failed
Stacktrace:
    at onInit (oh_modules/.ohpm/@rnoh+react-native-openharmony@0.72.53/oh_modules/@rnoh/react-native-openharmony/src/main/ets/RNOH/NapiBridge.ts:97:12)
    at create (oh_modules/.ohpm/@rnoh+react-native-openharmony@0.72.53/oh_modules/@rnoh/react-native-openharmony/src/main/ets/RNOH/RNInstancesCoordinator.ets:125:7)
    at onCreate (oh_modules/.ohpm/@rnoh+react-native-openharmony@0.72.53/oh_modules/@rnoh/react-native-openharmony/src/main/ets/RNOH/RNAbility.ets:96:35)

Cause

The reason is that the librawfile.z.so directory is located under system/lib64. On OHOS, sandbox controls have been applied, so this directory is not mounted; only system/lib64/ndk is mounted.

Solution

  1. Mount your device filesystem:
$ hdc target mount

  1. Modify the sandbox file: In system/etc/sandbox/appdata-sandbox.json, search for the keyword /system/lib and add /system/lib64 at the appropriate positions.

    Receive file from the device:

    $ hdc file recv /system/etc/sandbox/appdata-sandbox.json

Note: This entry should be added in all places after the system/lib section:

{
    "src-path":"/system/lib64",
    "sandbox-path":"/system/lib64",
    "sandbox-flags":[
        "bind",
        "rec"
    ],
    "check-action-status":"false"
}
  1. Send modified file back to the device:
$ hdc file send .\appdata-sandbox.json /system/etc/sandbox/
  1. Restart the device.

5. Register type windowRectChange failed

The application starts, the splash screen appears, but does not proceed further. An error appears in the logs:

08-05 17:47:27.604   16270-16270   A0beef/#RNOH_ARK                com.examp...loworld5  I     █____
                                                                                               ██████╗ ███╗   ██╗ ██████╗ ██╗  ██╗
                                                                                               ██╔══██╗████╗  ██║██╔═══██╗██║  ██║
                                                                                               ██████╔╝██╔██╗ ██║██║   ██║███████║
                                                                                               ██╔══██╗██║╚██╗██║██║   ██║██╔══██║
                                                                                               ██║  ██║██║ ╚████║╚██████╔╝██║  ██║
                                                                                               ╚═╝  ╚═╝╚═╝  ╚═══╝ ╚═════╝ ╚═╝  ╚═╝
                                                                                               █____ — MAIN
                                                                                               _█___ — BACKGROUND
                                                                                               __█__ — JS
                                                                                               ___█_ — WORKER
                                                                                               ____█ — CLEANUP
                                                                                               ==================
08-05 17:47:27.609   16270-16270   A0beef/#RNOH_CPP                com.examp...loworld5  I     █____ RNOHAppNapiBridge.cpp:99> onInit (LOG_VERBOSITY_LEVEL=0)
08-05 17:47:27.626   16270-16270   A0beef/#RNOH_CPP                com.examp...loworld5  I     █____ ArkTSBridge.cpp:23> ArkTSBridge::ArkTSBridge
08-05 17:47:27.652   16270-16270   A0beef/#RNOH_ARK                com.examp...loworld5  D     █____ RNAbility::onWindowStageCreate  START
08-05 17:47:27.652   16270-16270   A0beef/#RNOH_ARK                com.examp...loworld5  D     █____ RNAbility::onWindowSetup  START
08-05 17:47:27.673   16270-16270   A0beef/#RNOH_ARK                com.examp...loworld5  E     █____ RNAbility::onWindowSetup  Failed to setup window {"code":801}

RNAbility log:

08-05 17:47:27.672   16270-16270   C04200/JsRegisterManager        com.examp...loworld5  I     <340>[NAPI]Method windowRectChange has not been registerted
08-05 17:47:27.672   16270-16270   C04200/JsRegisterManager        com.examp...loworld5  E     <385>RegisterListener: [NAPI]Register type windowRectChange failed

Workaround

Temporary solution: comment out in the code in the file RNAbility.ets (line 150) in the directory:

.\oh-app\oh_modules\.ohpm\@rnoh+react-native-openharmony@0.72.53\oh_modules\@rnoh\react-native-openharmony\src\main\ets\RNOH

Find this fragment:

      mainWindow.on('windowSizeChange', onWindowSizeChange)
      //mainWindow.on('windowRectChange', onWindowReactChange)
      windowStage.on('windowStageEvent', onWindowStageChange)
